FOC Vector Drive

FOC Vector Drive

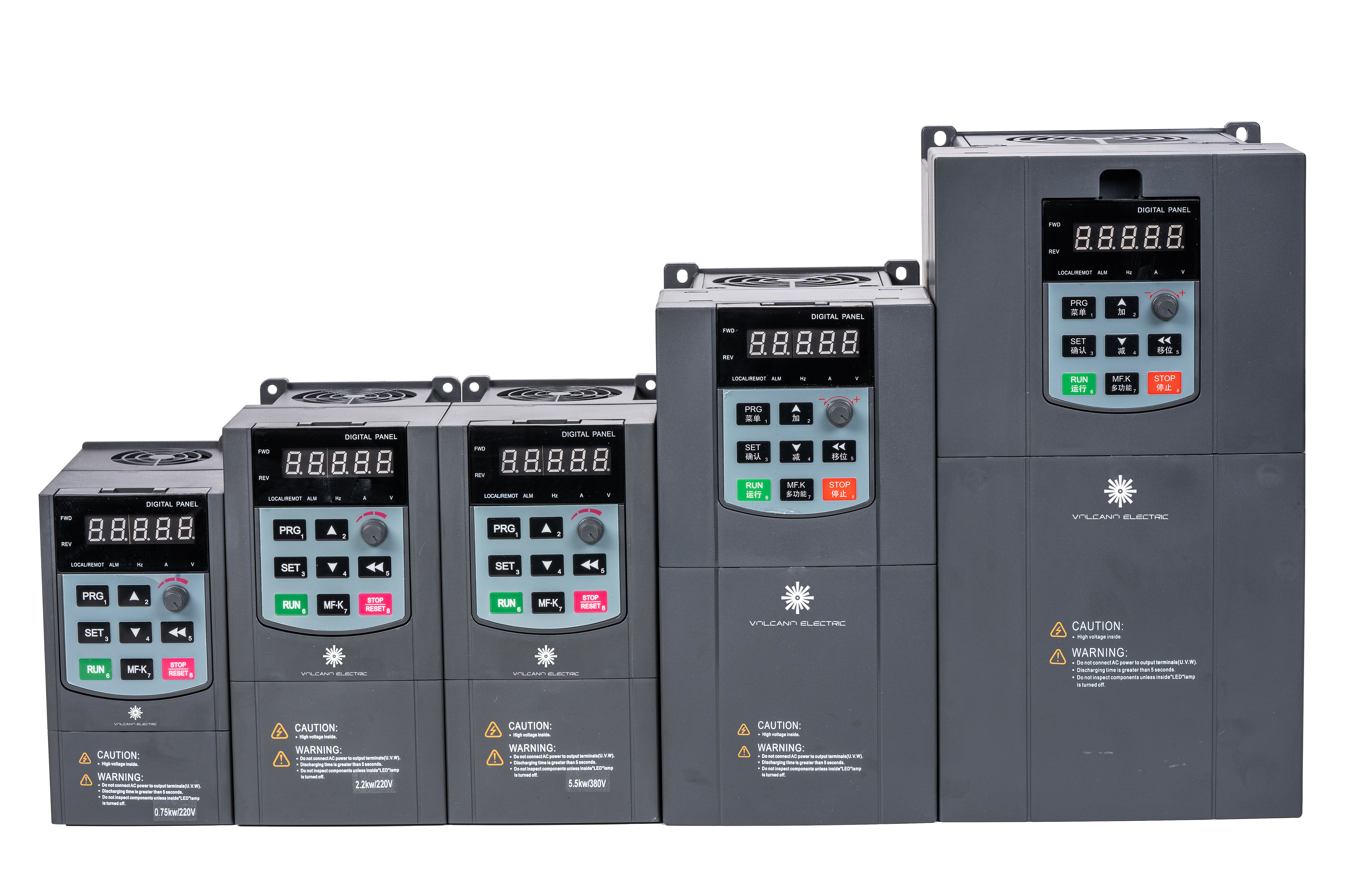

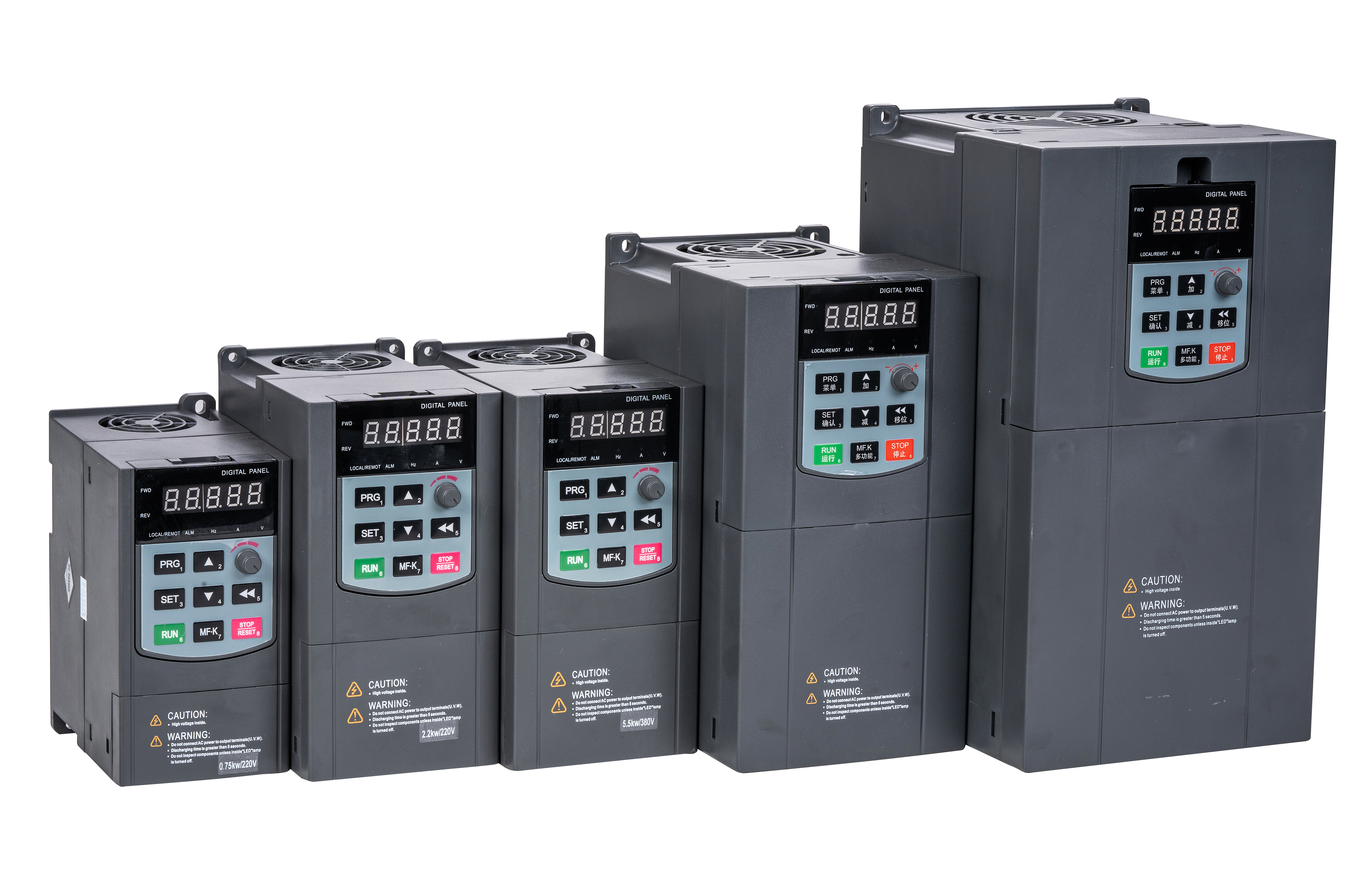

HS060 series vector driver

Product Feature

Comprehensive protection functions

Overvoltage, overcurrent, high voltage

IGBT short circuit, Ground fault

Inverse time overload etc. protection design


Capable of Driving Asynchronous and Synchronous Motors

Motor type can be switched between asynchronous and synchronous by setting parameters.

Torque Control

Torque control/speed control can be flexibly adjusted with various torque setting modes


nique dead-zone compensation


ensures stable torque output at low frequencies.


Unique oscillation suppression function


mechanical resonance points without frequency hopping.


Multiple Input and Output Interfaces


High-Performance FVC Control Mode


Speed Control Accuracy: ±0.05%


peed Control Range: 1:1000


Torque Control Response: 180% of rated torque at 0Hz


Diverse Encoder PCB

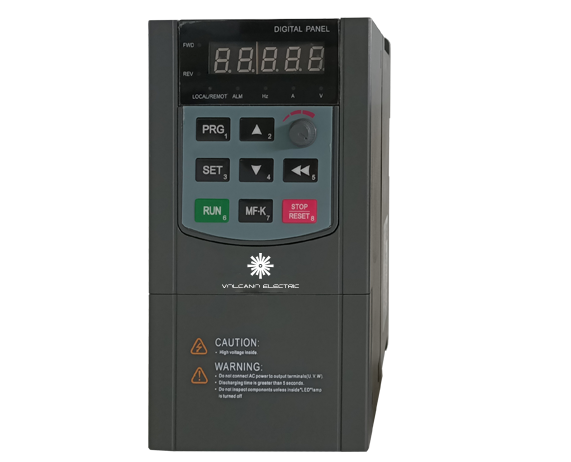

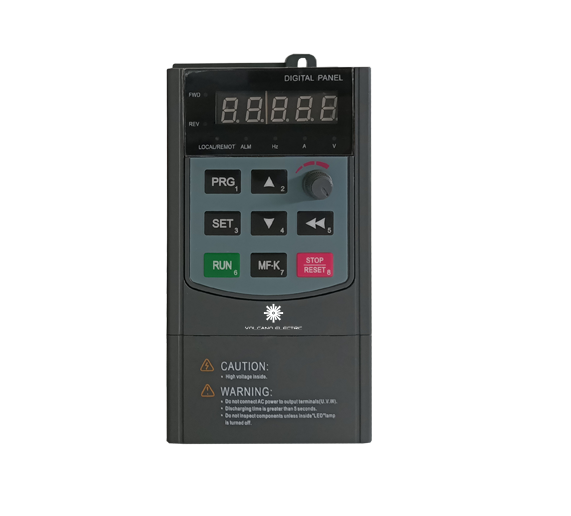

The HS060 vector drive - represented by Volcano Electric Co., Ltd., is one of high-performance vector drive, compatible for both three-phase AC asynchronous motors and permanent magnet synchronous motors.

It supports various advanced international drive control technologies, including improved vector VF control technology (VVF), speedless sensor vector control technology (SVC), and vector control technology with speed sensors (FVC). It is compatible both speed and torque output modes.

It is compatible with expansion I/O cards, communication bus expansion cards, and various PG cards. The HS060 vector drive is suitable for applications like machine tools, metal products, wires and cables, plastics, printings and packagings, textiles and chemical fibers, building materials, oil fields, fans, pumps, and various automated drive applications.

HS060   Vector Drive Model Specifications
Driver ModelPower-Supply
Capacity		Input Current
(A)		Output Current
(A)		Compatible Motor
(kW)(HP)
HS060A20R7MN-S               2.2              8.2              3.8              0.7              1.0
HS060A21R5MN-S3.7 14.0 7.5 1.5   2.0
HS060A22R2MN-S6.0 20.0 10 2.2  3.0
HS060A23ROMN-S9.5 28 13.5 3 4
HS060A40R7MB-S2.8 2.4 2.5 0.75 1
HS060A41R5MB-S5 4.6 3.7 1.5 2
HS060A42R2MB-S               6.7              6.3              5.0              2.2               3
HS060A44R0MB-S12 11.4 10.0 3.7 5
HS060A45R5MB-S              17.5             16.7             13.0             5.5              7.5
HS060A47R5MB-S22.8 21.9 17.0 7.5 10
HS060A4011ROMB-S              33.4             32.2             25.0              11               15
HS060A4015ROMB-S42.8 41.3 33 15 20
HS060A418R5MB-S               45              49.5              38              18.5              25
HS060A422ROMB-S54 59 45 22   30
HS060A430R0MN-S52 57 60 30 40
HS060A437ROMN-S63 69 75 37   50
HS060A445ROMN-S81 89 91 45 60
HS060A455ROMN-S97 106 112 55   75
HS060A475ROMN-S               127              139              150               75               100
HS060A490ROMN-S150 164 180 90 125
HS060A4110ROMN-S179 196 210 110 150
HS060A4132ROMN-S220 240 250 132 180
HS060A4160ROMN-S              263              287              310              160              220
HS060A4200ROMN-S334 365 350 200 275
HS060A4220ROMN-S              375              410              415              220              300
HS060A4250ROMN-S404 441 470 250 340
HS060A4280ROMN-S453 495 510 280 380
HS060A4315ROMN-S517 565 600 315 430
HS060A4355ROMB-S565 617 660 355 485
HS060A4400ROMN-S629 687 750 400 545
