Fan EC Motor

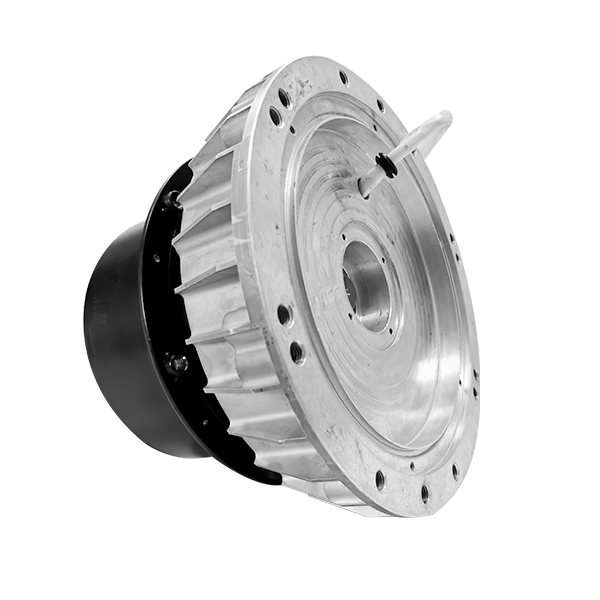

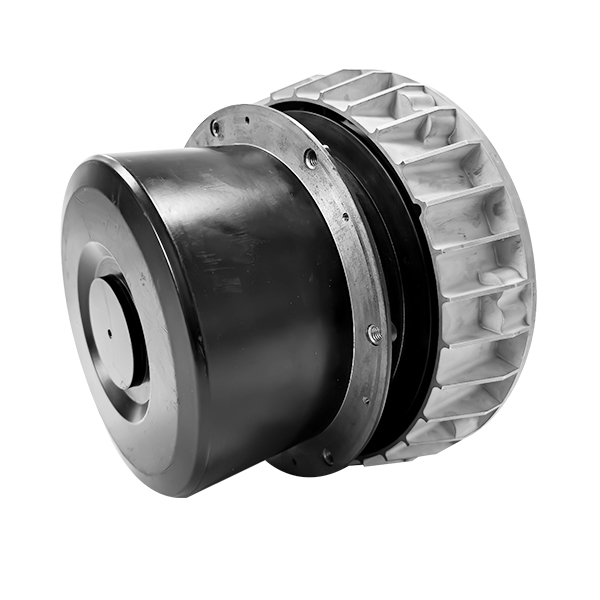

External rotor EC fan Motor HSE188

Product Feature

Strong Magnetic Materials: Utilizes high-temperature resistant rare earth NdFeB magnets and anti-corrosion surface treatment.

Structural Type: optional to take 8 poles, 10 poles, 12 poles and 16 poles (rotor ODΦ92 mm, Φ102 mmΦ138 mmΦ188 mm) sine wave magnet designs for driver controller integrated motor, good dynamic control performance

Power and Speed: drive controller integrated EC motor optional to be designed in the power range of 0.55 kW - 7.5 kW, with speed tailored according to specific application requirements

Voltage Application: supports various voltage designs, including high-voltage motor drive control series (220VAC, 380VAC, 110VAC)

Wide Voltage Range: Customizable with wide voltage startup operation up to ±30%

Speed Control: remote communication control via RS485/Modbus, with 0-10V stepless speed regulation

Low Torque Ripple Precision, Quiet Design, High Dynamic Response Speed: In large-scale applications, users can match with a majority of environmental controllers available on the market

Position Accuracy: Control methods include no position, magnetic encoder coding, photoelectric encoding, rotary encoding, sine-cosine encoding, absolute-type encoding, etc., option made as per application requirements.

Industry Standards: Complies with national level 1 energy efficiency standards, IE4/IE5, and EMC-related electromagnetic standards, customizable with PFC function

Application Scope: various types of EC fans, axial EC fans, centrifugal EC fans, and other EC motor applications in the industry


With a sinusoidal magnetic field design, these motors reduce torque pulsation, enabling smooth torque output to meet high precision position control requirements. Fire Mountain Electric owns a large rare earth material production base and an efficient motor R&D testing department, ensuring the core quality of permanent magnet motors. All products undergo strict testing to ensure they meet qualification standards before leaving the factory.

Employ high-temperature resistant rare earth strong magnetic materials, utilizing an 8 poles, 10 poles, or higher rotor design process, along with high-performance temperature-resistant magnets. The rigorous manufacturing process ensures stable high-speed dynamic response of the motor.



HSE188
型号定义额定电压
VAC
额定功率
KW
额定转速
Rpm
     IP 等级工作温度调速
  HSEPM38H220-188N17-S053802.21700IP54-25℃~+60℃0-10VDC/RS485
  HSEPM38H250-188N24-S05380 2.5  2400 IP54-25℃~+60℃0-10VDC/RS485
  HSEPM38H350-188N16-S05      3803.51600   IP54 -25℃~+60℃0-10VDC/RS485
HSEPM38H350-188N27-S05380 3.5   2700 IP54-25℃~+60℃0-10VDC/RS485
  HSEPM38H400-188N21-S05380  2100 IP54-25℃~+60℃0-10VDC/RS485
HSEPM38H550-188N17-S05380 5.5   1750 IP54-25℃~+60℃0-10VDC/RS485
