Centrifugal Fan EC Motor

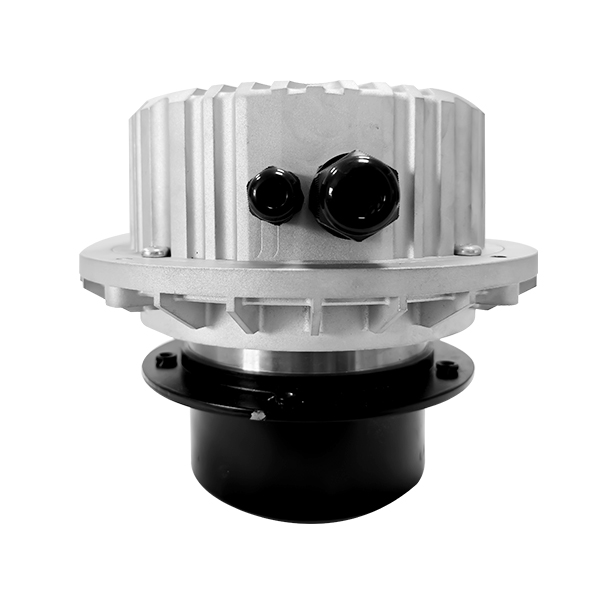

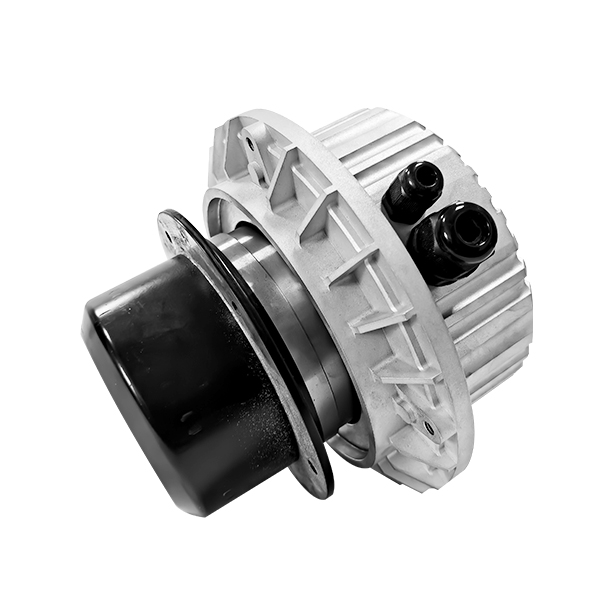

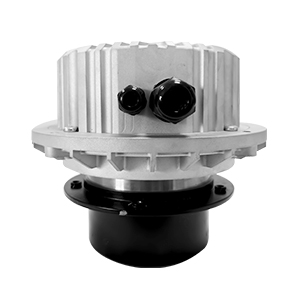

External rotor EC fan Motor HSE102

Product Feature

Strong Magnetic Materials: Utilizes high-temperature resistant rare earth NdFeB magnets and anti-corrosion surface treatment.

Structural Type: optional to take 8 poles, 10 poles, 12 poles and 16 poles (rotor ODΦ92 mm, Φ102 mmΦ138 mmΦ188 mm) sine wave magnet designs for driver controller integrated motor, good dynamic control performance

Power and Speed: drive controller integrated EC motor optional to be designed in the power range of 0.55 kW - 7.5 kW, with speed tailored according to specific application requirements

Voltage Application: supports various voltage designs, including high-voltage motor drive control series (220VAC, 380VAC, 110VAC)

Wide Voltage Range: Customizable with wide voltage startup operation up to ±30%

Speed Control: remote communication control via RS485/Modbus, with 0-10V stepless speed regulation

Low Torque Ripple Precision, Quiet Design, High Dynamic Response Speed: In large-scale applications, users can match with a majority of environmental controllers available on the market

Position Accuracy: Control methods include no position, magnetic encoder coding, photoelectric encoding, rotary encoding, sine-cosine encoding, absolute-type encoding, etc., option made as per application requirements.

Industry Standards: Complies with national level 1 energy efficiency standards, IE4/IE5, and EMC-related electromagnetic standards, customizable with PFC function

Application Scope: various types of EC fans, axial EC fans, centrifugal EC fans, and other EC motor applications in the industry


With a sinusoidal magnetic field design, these motors reduce torque pulsation, enabling smooth torque output to meet high precision position control requirements. Fire Mountain Electric owns a large rare earth material production base and an efficient motor R&D testing department, ensuring the core quality of permanent magnet motors. All products undergo strict testing to ensure they meet qualification standards before leaving the factory.

Employ high-temperature resistant rare earth strong magnetic materials, utilizing an 8 poles, 10 poles, or higher rotor design process, along with high-performance temperature-resistant magnets. The rigorous manufacturing process ensures stable high-speed dynamic response of the motor.


HSE102
型号定义额定电压
VAC
额定功率
KW
额定转速
Rpm
IP等级工作温度调速
HSEPM22H65-102N15-S05                             2200.651500IP55-25~+600-10V/RS485
  HSEPM22H65-102N20-S05220 0.65  2050 IP54-25~+600-10V/RS485
HSEPM22H65-102N26-S05 2200.652600 IP54 -25~+600-10V/RS485
  HSEPM22H40-102N20-S052200.42000 IP54 -25~+600-10V/RS485
  HSEPM22H85-102N27-S052200.852700 IP54 -25~+600-10V/RS485
