IEC Permanent Magnet Synchronous Motor

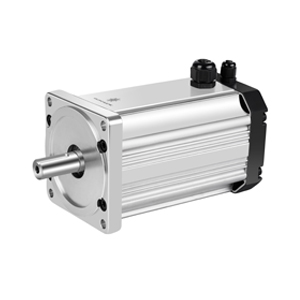

HSI-100-IEC standard energy-saving and efficient permanent magnet synchronous motor

Product Feature

Same Frame with Different Core

With the same outer dimensions and mounting interface as standard IEC motors, these motors incorporate a powerful magnetic field, providing efficient energy savings and stable power output

Ultra-High Efficiency

Superior magnetic materials and high slot-fill ratio winding technology, along with high-grade & low iron-loss silicon steel sheets, makes motors performing exceptional efficiency and system efficiency exceeds 90% under running with compatible controllers.

High-Speed Response

Rotor features 8 poles, 10 poles, or higher along with ultra-strong neodymium-iron-boron magnets to achieve quick dynamic response

Low Torque Ripple

Rotor with sine-wave magnetic field design, minimizes pulsating torque, resulting in smooth torque output, noise reduced, and lower speed fluctuations

High Reliability

Premium materials taken for all motors, NdFeB manufactured by Volcano, which can better guarantee the quality of core materials and avoid the most fatal demagnetization problem of permanent magnet motors. In addition, the motor can be vacuum-filled, which not only effectively solves the internal heat dissipation, but also avoids the motor burning caused by the paint peeling of the enameled wire due to the magnetic induction vibration generated by the opposite-current.


Maintain high efficiency at high speeds, with high torque density and higher rated power, short start-up times, high overload capacity, and convenient control. The speed being determined only by frequency, remains constant and not to be impacted with load or voltage fluctuations, running smoothly and reliably. Allowing for reducing equipment drive motor installation capacity based on actual shaft power, thereby saving energy and reducing fixed asset investments. 3 phase asynchronous motors and its systems been perfectly replaced

Application: various industrial equipments


IEC100/112
   Frame
Rated
Output
Rated
Torque
Rated
Current
Rated
Speed
nstantaneous
Max.Torque
Peak
Speed
Torque
Constant
Induced
Voltage
Constant
   Rotor
  Inertia





    220VAC

(Customizable

    voltage
24/48/60/
72/96VDC)
KWN.m           A          Rpm          N.m          Rpm        N.m/A        V/krpm        Kg ·m²

2.25 21.49 8.54 1000 64.46 1200 2.52 205 0.00641

3.75 35.87        14.23       1000         107.44        1200        2.52         205         0.0084

23.88 14.23 1500 71.63 2000 1.68 127 0.00641

77.94        14.23       3000          35.87        5000        0.84          67         0.0044


5.5 35.02 20.87 1500 105.05 2000 1.68 127 0.0084



17.51        20.87       3000          52.53        5000        0.84          67         0.00647

TECHNICAL PARAMETERS

IEC100/112
   Frame
Rated
Output
Rated
Torque
Rated
Current
Rated
Speed
nstantaneous
Max.Torque
Peak
Speed
Torque
Constant
Induced
Voltage
Constant
Rotor
Inertia





380VAC

(Customizable
voltage
24/48/60/
72/96VDC)
KWN.m           A          Rpm           N.m          Rpm        N.m/A        V/krpm        Kg ·m²

2.25 21.49 4.90 1000 64.46 1200 4.38 355 0.00641

3.75 35.87        8.17       1000         107.44        12004.38         355         0.0084

23.88 8.17 1500 71.63 2000 2.92 205 0.00641

11.94        8.17       3000          35.81        50001.46          116        0.0044



35.02 20.87 1500 105.05 2000 1.68 205 0.0084


5.5 1751         11.98       3000          52.53        5000        1.46          116        0.00641
